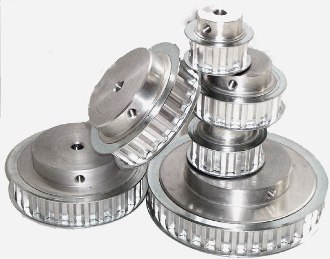

T10 x 16mm (10mm Pitch) - Aluminium Timing Pulleys with Hub & 2 x M6 Set Screws
Suits 16mm wide T10 Belts

Machining Service

If you require the Pilot Bores to be machined to suit your application, please add the PT10XX Machining Charge. Increase the number of couplers and machining charges (if any) at the Cart.

Part Number	Teeth	Flange OD ∅	Addendum Circle ∅	PCD ∅	Hub ∅	Hub Width	Pilot Bore ∅	Weight	Price AUD
PT10-16T18SH	18	60 mm ∅	56.45 mm ∅	57.30 mm ∅	40 mm ∅	12 mm	8 mm ∅	0.20 Kg	$
PT10-16T24SH	24	83 mm ∅	75.55 mm ∅	76.40 mm ∅	60 mm ∅	12 mm	8 mm ∅	0.40 Kg	$16.50
PT10-16T28SH	28	93 mm ∅	88 mm ∅	89.13 mm ∅	60 mm ∅	12 mm	8 mm ∅	0.50 Kg	$19.80
PT10-16T36SH	36	119 mm ∅	114 mm ∅	114.6 mm ∅	70 mm ∅	12 mm	8 mm ∅	0.80 Kg	$30.80
PT10XX	If you require machining, specify Finished Bore Hole Sizes at the Billing/Shipping Form - Price Per Pulley ⇒								$29.15
