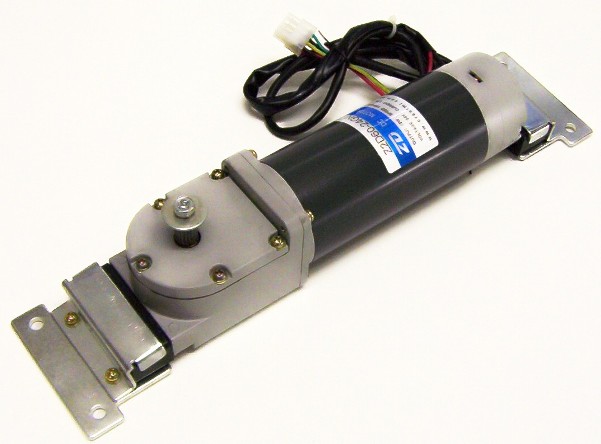

Right-Angle Drive 24 VDC 60 Watt Motor

Sliding Door Operator or indeed any application where right angled drive and/or quadrature sensing is/are desired for speed and position feedback.

AUD $245.00

Details:

• 24 VDC 60 Watt Motor - IP20
• Rated Current: 4 Amps
• No Load Speed: 270 RPM
• Torque: 2.65 N.m
• Net Weight: 1.8Kg
• Overall noise level: <50dB @ 500mm
• Life before maintenance: 2500 Hours
• Overall Dimensions including mounts: L351.5 mm x W82 mm x H71 mm
• Integral Quadrature Hall Sensor for speed and position sensing applications
• Specifications & Drawing
