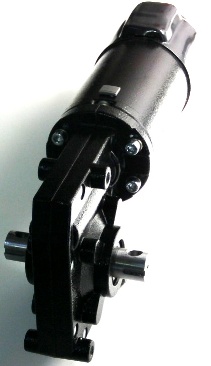

Right-Angle Drive Worm Gear Motors - Reversible

Suits applications where high torque is required such as truck, dolly, winch, etc.

Due to the worm gear pitch, the shaft cannot be rotated by force from the load once power is removed from the motor. This provides very effective braking and is tremendously advantageous where creeping of the load is undesirable.

Worm Gear Motors

Motor ParametersLoaded RPMMaximum Torque Price AUDSelection Data Sheet
12 Volt DC
350 Watts
2-90 Amps
20 @ 62 N.m
(No-Load RPM=60)
62 N.m
637.32 Kgf.cm
$297.00
73ZYJ08-12LR
24 Volt DC
350 Watts
1.5-45 Amps
20 @ 62 N.m
(No-Load RPM=60)
62 N.m
637.32 Kgf.cm
$297.00
73ZYJ08-24LR
